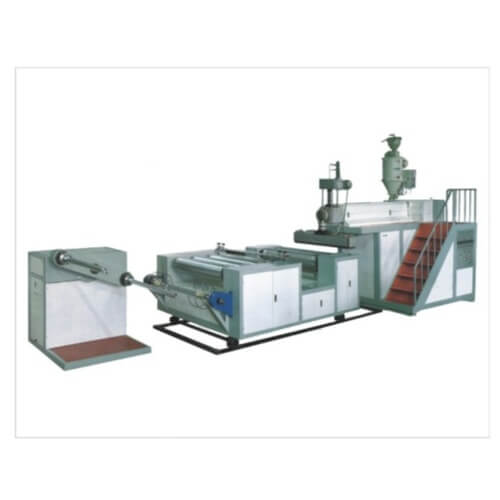

Double Layers Air Bubble Film Machine
two layers air bubble film machine also called air bubble wrap film extrusion,
machine use Low Density Polyethylene(LDPE) produce air bubble film.
Air bubble film machine simple design,easy operate,design for 24 hours 7 days working.
Main Technical Variables:
Model | KDPE-1000 | KDPE-1200 | KDPE-1500 |
Raw Material | LDPE | LDPE | LDPE |
Screw Diameter | φ65mm | φ75mm | φ90mm |
Film Width | 1000mm | 1200mm | 1500mm |
Film Layer | Two Layers | Two Layers | Two Layers |
Bubble Hole Diameter(mm) | 6,8,10,12,14,16,18,20mm | ||
Film Color | Transparent,Black,Red,White,blue…bag color changed by masterbatch | ||
Output | 50kg/h | 60kg/h | 70kg/h |
Total Power | 48kw | 58kw | 68kw |
L/D Ratio Of Screw | 28:1 | 28:1 | 28:1 |
Water Consumption | 0.5m3/h | 0.5m3/h | 0.5m3/h |
Machine Weight | 3 | 4 | 5 |
Power Voltage | 220V,380V,440V | ||
Air Shaft Diamater | without paper core ,58mm,76mm | ||
Machine Working Time | 24 hours*7 | 24 hours*7 | 24 hours*7 |
Warranty | 1 year | ||
Technical Assistance | Engineers available to service machinery overseas |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
