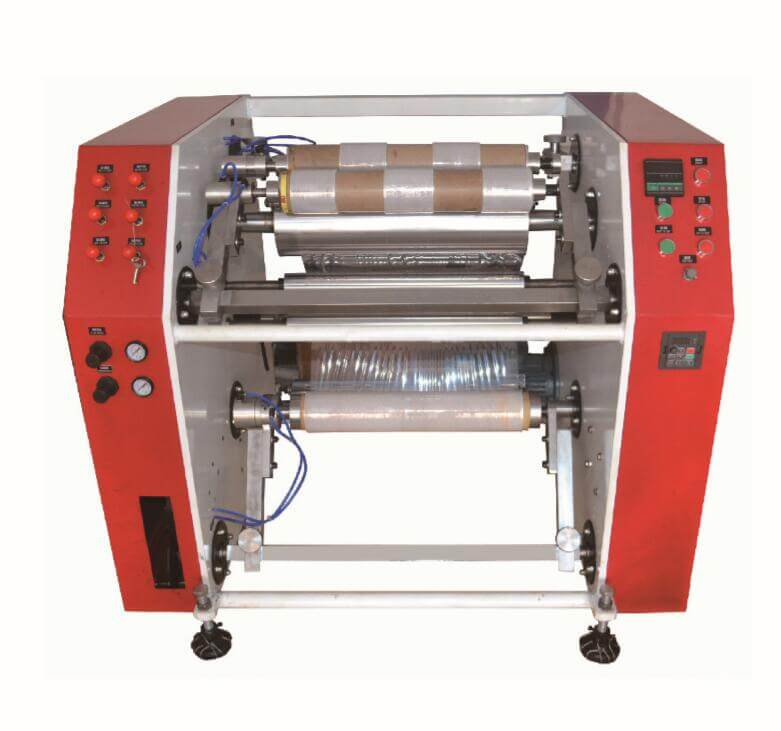

The STRETCH film rewinding machine is characterized by a friendly and ergonomic design that facilitates handling even to less experienced operators. The machine is made of the best components that allow for precise rewinding of large rollers (machine rollers) and a small roll (hand rolls).
The semi-auto stretch film rewinding machine designed for the rapid converting of stretch film or cling film from longer jumbo roll into shorter small roll.
It is have both rewinding and slitting function.
The layout and operation make it user friendly and ideal for volume production. A skilled operator is not required.
Main Technical Parameters:
Model | KDRW-500 | KDRW-1000 |
Width of finished product | 500mm | 1000mm |
Power of motor | 1.5KW | 3KW |
Mechanical linear speed (max) | 400 m/min | 400 m/min |
Roll Laying Mode | By hand | By hand |
Diameter of parent roll(max) | 400mm | 400mm |
Width of parent roll (max) | 500mm | 1000mm |
Core specification of parent roll | 3″ | 3″ |
Width of sub-roll | 500mm | 1000mm |
Diameter of sub-roll (max) | 300mm | 300mm |
Core of sub-roll | 3″ , 2″ | 3″ , 2″ |
Dimensions (L*W*H) | 1.4*1.1*1.1m | 1.9*1.5*1.5m |
Weight | 700 Kg | 1000 Kg |
Power Voltage | 220V,380V,440V | 220V,380V,440V |
Machine Working time | 24 hours*7 | 24 hours*7 |
Paper Core Diameter | 76mm(3 inch) | 76mm(3 inch) |
Warranty | 1 year | 1 year |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Our Main parts cooperator as following brand,but standard parts all made from China.
